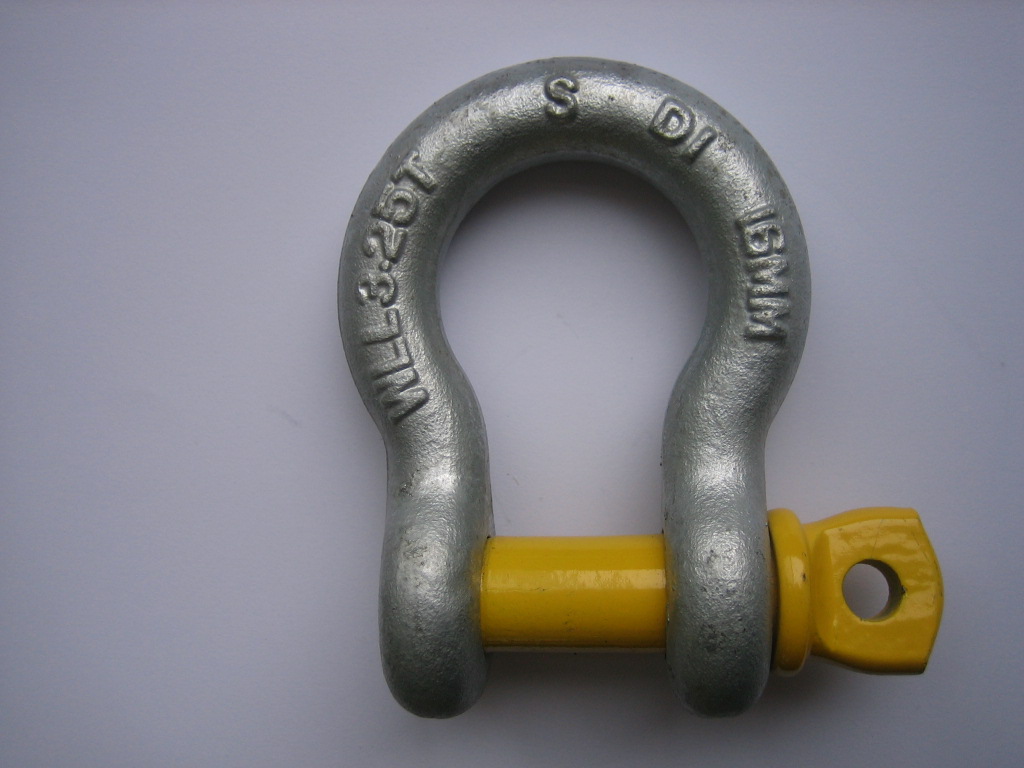

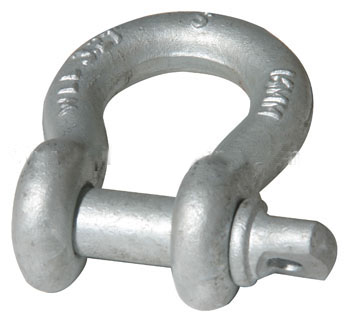

Grade S Bow Shackle With Screw Pin
Material: Body: Carbon Steel , Pin: Alloy Steel
Finishing: Hot Dip Galvanized
Heat treated: Tempered and Quenched
Minimun Utimate Strength: 6 Times The Working Load Limit.
Packing: Gunny Bag
|
ITEM
NO.
|
Nominal
Size(in.)
|
Working
LoadLimit(t)*
|
Weight
Each(lbs.)
|

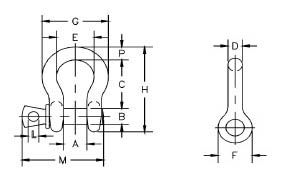

Dimensions (in.)
|
Tolerance+/-
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
L
|
M
|
P
|
C
|
A
|
|
100501
|
3/16
|
1/3
|
.06
|
.38
|
.25
|
.88
|
.19
|
.60
|
.56
|
.98
|
1.47
|
.16
|
1.12
|
.19
|
.06
|
.06
|
|
100502
|
1/4
|
1/2
|
.10
|
.47
|
.31
|
1.13
|
.25
|
.78
|
.61
|
1.28
|
1.84
|
.19
|
1.38
|
.25
|
.06
|
.06
|
|
100503
|
5/16
|
3/4
|
.19
|
.53
|
.38
|
1.22
|
.31
|
.84
|
.75
|
1.47
|
2.09
|
.22
|
1.66
|
.31
|
.06
|
.06
|
|
100504
|
3/8
|
1
|
.31
|
.66
|
.44
|
1.44
|
.38
|
1.03
|
.91
|
1.78
|
2.49
|
.25
|
2.03
|
.38
|
.13
|
.06
|
|
100505
|
7/16
|
1-1/2
|
.38
|
.75
|
.50
|
1.69
|
.44
|
1.16
|
1.06
|
2.03
|
2.91
|
.31
|
2.38
|
.44
|
.13
|
.06
|
|
100506
|
1/2
|
2
|
.72
|
.81
|
.63
|
1.88
|
.50
|
1.31
|
1.19
|
2.31
|
3.28
|
.38
|
2.69
|
.50
|
.13
|
.06
|
|
100507
|
5/8
|
3-1/4
|
1.37
|
1.06
|
.75
|
2.38
|
.63
|
1.69
|
1.50
|
2.94
|
4.19
|
.44
|
3.34
|
.69
|
.13
|
.06
|
|
100508
|
3/4
|
4-3/4
|
2.35
|
1.25
|
.88
|
2.81
|
.75
|
2.00
|
1.81
|
3.50
|
4.97
|
.50
|
3.97
|
.81
|
.25
|
.06
|
|
100509
|
7/8
|
6-1/2
|
3.62
|
1.44
|
1.00
|
3.31
|
.88
|
2.28
|
2.09
|
4.03
|
5.83
|
.50
|
4.50
|
.97
|
.25
|
.06
|
|
100510
|
1
|
8-1/2
|
5.03
|
1.69
|
1.13
|
3.75
|
1.00
|
2.69
|
2.38
|
4.69
|
6.56
|
.56
|
5.07
|
1.06
|
25
|
.06
|
|
100511
|
1-1/8
|
9-1/2
|
7.41
|
1.81
|
1.25
|
4.25
|
1.16
|
2.91
|
2.69
|
5.16
|
7.47
|
.63
|
5.59
|
1.25
|
.25
|
.06
|
|
100512
|
1-1/4
|
12
|
9.50
|
2.03
|
1.38
|
4.69
|
1.29
|
3.25
|
3.00
|
5.75
|
8.25
|
.69
|
6.16
|
1.38
|
.25
|
.06
|
|
100513
|
1-3/8
|
13-1/2
|
13.53
|
2.25
|
1.50
|
5.25
|
1.42
|
3.63
|
3.31
|
6.38
|
9.16
|
.75
|
6.84
|
1.50
|
.25
|
.13
|
|
100514
|
1-1/2
|
17
|
17.20
|
2.38
|
1.63
|
5.75
|
1.54
|
3.88
|
3.63
|
6.88
|
10.00
|
.81
|
7.35
|
1.62
|
.25
|
.13
|
|
100515
|
1-3/4
|
25
|
27.78
|
2.88
|
2.00
|
7.00
|
1.84
|
5.00
|
4.19
|
8.86
|
12.34
|
1.00
|
9.08
|
2.25
|
.25
|
.13
|
|
100516
|
2
|
35
|
45.00
|
3.25
|
2.25
|
7.75
|
2.08
|
5.75
|
4.81
|
9.97
|
13.68
|
1.22
|
10.34
|
2.40
|
.25
|
.13
|
|
100517
|
2-1/2
|
55
|
85.75
|
4.13
|
2.75
|
10.50
|
2.71
|
7.25
|
5.69
|
12.87
|
17.84
|
1.38
|
13.00
|
3.13
|
.25
|
.25
|
