Brand information

Name: Alloy Steel Round Pin

Hits: 3417

Entry time: 2010-12-01 19:57:53

Details

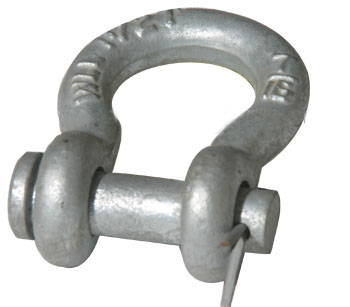

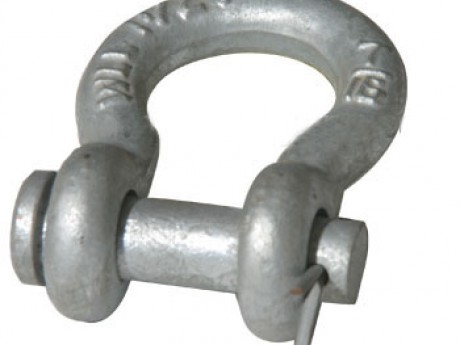

Alloy Steel Round Pin Anchor Shackle


http://www.qinde-rigging.com/images/qianb.jpgMaterial: Alloy Steel
http://www.qinde-rigging.com/images/qianb.jpgFinishing: Hot Dip Galvanized
http://www.qinde-rigging.com/images/qianb.jpgHeat treated: Tempered and Quenched
http://www.qinde-rigging.com/images/qianb.jpgMinimun Utimate Strength: 6 Times The Working Load Limit.
http://www.qinde-rigging.com/images/qianb.jpgPacking: Gunny Bag




NominalSize(in.)
WorkingLoadLimit(t)*
WeightEach(lbs.)

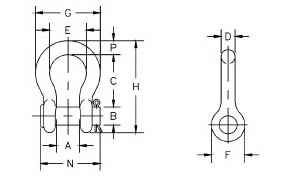

Dimensions (in.)
Tolerance+/-
A
B
C
D
E
F
G
H
N
P
C
A

1/4
1/2
.13
.47
.31
1.13
.25
.78
.61
1.28
1.84
1.34
.25
.06
.06

5/16
3/4
.18
.53
.38
1.22
.31
.84
.75
1.47
2.09
1.59
.31
.06
.06

3/8
1
.29
.66
.44
1.44
.38
1.03
.91
1.78
2.49
1.86
.38
.13
.06

7/16
1-1/2
.38
.75
.50
1.69
.44
1.16
1.06
2.03
2.91
2.13
.44
.13
.06

1/2
2
.71
.81
.63
1.88
.50
1.31
1.19
2.31
3.28
2.38
.50
.13
.06

5/8
3-1/4
1.50
1.06
.75
2.38
.63
1.69
1.50
2.94
4.19
2.91
.69
.13
.06

3/4
4-3/4
2.32
1.25
.88
2.81
.75
2.00
1.81
3.50
4.97
3.44
.81
.25
.06

7/8
6-1/2
3.49
1.44
1.00
3.31
.88
2.28
2.09
4.03
5.83
3.81
.97
.25
.06

1
8-1/2
5.00
1.69
1.13
3.75
1.00
2.69
2.38
4.69
6.56
4.53
1.06
.25
.06

1-1/8
9-1/2
6.97
1.81
1.25
4.25
1.13
2.91
2.69
5.16
7.47
5.13
1.25
.25
.06

1-1/4
12
9.75
2.03
1.38
4.69
1.29
3.25
3.00
5.75
8.25
5.50
1.38
.25
.06

1-3/8
13-1/2
13.25
2.25
1.50
5.25
1.42
3.63
3.31
6.38
9.16
6.13
1.50
.25
.13

1-1/2
17
17.25
2.38
1.63
5.75
1.54
3.88
3.63
6.88
10.00
6.50
1.62
.25
.13

1-3/4
25
29.46
2.88
2.00
7.00
1.84
5.00
4.19
8.86
12.34
7.75
2.25
.25
.13

2
35
45.75
3.25
2.25
7.75
2.08
5.75
4.81
9.97
13.68
8.75
2.40
.25
.13
