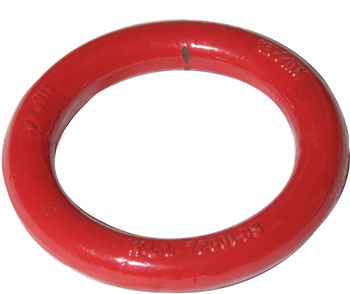

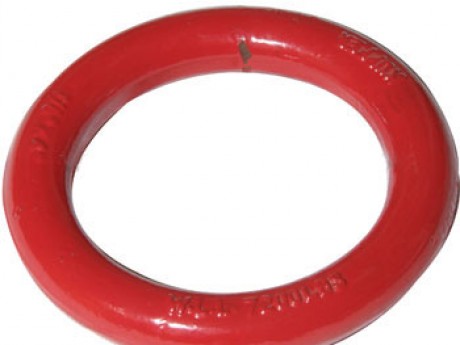

Name: Weldless Ring
Hits:
3230
Entry time: 2010-12-02 09:05:22
Details
Forged Steel — Quenched and Tempered.
Material: Carbon steel 1045#
Finishing: powder coated
Features quick and easy assembly.
Packing: In Gunny bags
|
|
DIMENSIONS
|
Weight
(lbs)
|
Working Load Limit
Single Pull (lbs)
|
|
Diameter Stock(in)
|
Inside Diameter (in)
|
|
|
7/8
|
4
|
2.70
|
7200
|
|
|
7/8
|
51/2
|
3.40
|
5600
|
|
|
1
|
4
|
3.50
|
10800
|
|
|
11/8
|
6
|
6.50
|
10400
|
|
|
11/4
|
5
|
7.00
|
17000
|
|
|
13/8
|
6
|
10.63
|
19000
|
