Brand information

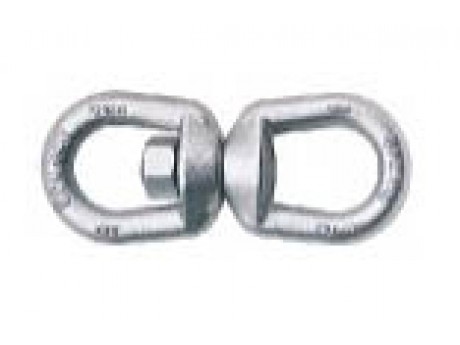

Name: Regular Swivel
Hits:
3138
Entry time: 2010-12-02 09:08:33
Details
Meets the performance requirements of Federal Specification RR-C-271D, Type VII, Class 1, except for those provisions required of the contractor. For additional information.
|
|
Size(in.)
|
WorkingLoadLimit*(lbs.)
|
WeightEach(lbs.)
|

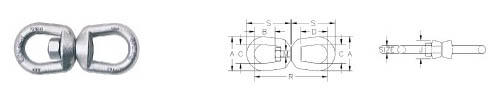

Dimensions(in.)
|
|
A
|
B
|
C
|
D
|
J
|
M
|
R
|
S
|
|
|
1/4
|
850
|
.21
|
1.25
|
.69
|
.75
|
1.06
|
.69
|
.31
|
2.94
|
1.69
|
|
|
5/16
|
1250
|
.39
|
1.63
|
.81
|
1.00
|
1.25
|
.81
|
.38
|
3.56
|
2.06
|
|
|
3/8
|
2250
|
.71
|
2.00
|
.94
|
1.25
|
1.50
|
1.00
|
.50
|
4.31
|
2.50
|
|
|
1/2
|
3600
|
1.32
|
2.50
|
1.31
|
1.50
|
2.00
|
1.31
|
.63
|
5.44
|
3.19
|
|
|
5/8
|
5200
|
2.49
|
3.00
|
1.56
|
1.75
|
2.38
|
1.50
|
.75
|
6.56
|
3.88
|
|
|
3/4
|
7200
|
4.02
|
3.50
|
1.75
|
2.00
|
2.63
|
1.88
|
.88
|
7.19
|
4.31
|
|
|
7/8
|
10000
|
6.25
|
4.00
|
2.06
|
2.25
|
3.06
|
2.13
|
1.00
|
8.38
|
5.00
|
|
|
1
|
12500
|
8.95
|
4.50
|
2.31
|
2.50
|
3.50
|
2.38
|
1.13
|
9.63
|
5.75
|
|
|
1-1/4
|
18000
|
16.37
|
5.63
|
2.69
|
3.13
|
3.69
|
3.00
|
1.50
|
11.44
|
6.75
|
|
|
1-1/2
|
45200
|
45.79
|
7.00
|
3.88
|
4.00
|
4.19
|
4.00
|
2.25
|
17.13
|
10.00
|
